PI 260110-046
70519687
1

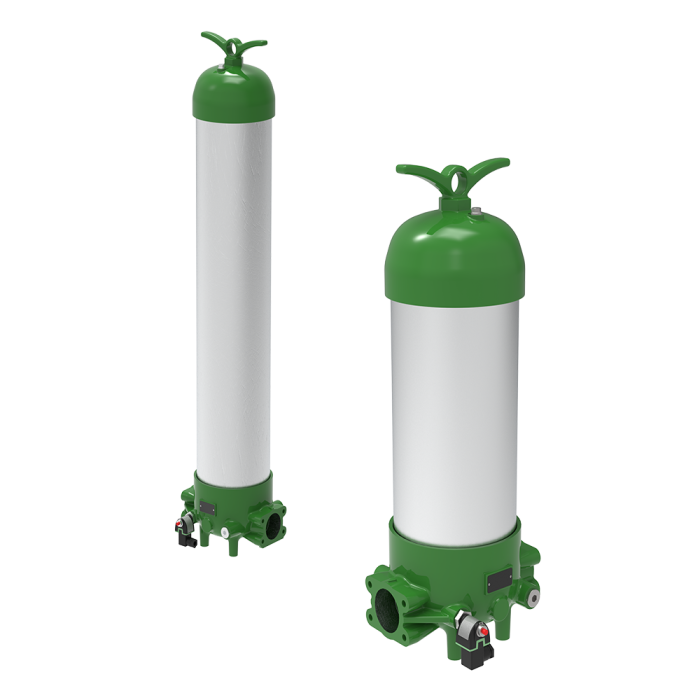

Our Pi 260 is particularly maintenance-friendly and accessible from the outside. Due to the service-friendly handling and the optimal filter selection, the filter protectsagainst contamination.
Nominal size to 1100
- Low space requirement due to compactdesign
- Minimal pressure loss due to streamlined design of the components
- High differential pressure stability and dirt holding capacity of the elements
For hydraulic systems and lubrication systems, we have a comprehensive range of low-pressure filters in our product portfolio. These are available in various designs and dimensions, as well as for different pressure ratings.
| Filter type | Low pressure filter |
|---|---|
| Series | Pi 260 |
| Nominal size | 1.100 l/min |
| Connection type | Flange ISO 6162-1 |
| Connection size | SAE 2,5 |
| max. operating pressure | 25 bar |
| Operating temperature range | -30°C - +120°C |
| Filter head material | Alu |
| Filter housing material | Alu |
| Cold start valve | No |
| Reverse flow valve | Yes |
| Maintenance indicator | No |
| H2O Sensor | No |
| Element installation | No |
| H.T.S. | 84219990 |
| Country of origin / region | CN/ |
| Product weight | 0,000 KG |
